Image Visual¶
The Image visual displays 2D colored or single-channel images (with colormaps) anchored at a position in 3D space. It supports flexible anchoring, sizing in pixels or normalized device coordinates (NDC), rescaling behavior, and optional square or rounded borders.

Overview¶
- Displays RGBA or single-channel images in a 2D panel
- Anchored at a 3D NDC position using a configurable alignment point
- Size can be set in either pixels or NDC units
- Supports borders, round corners, and rescaling behavior
- Image data can be full color or colormapped from single-channel textures
When to use¶
Use the image visual when:
- You need to overlay 2D raster data (e.g. camera frames, microscope images)
- You want precise control over alignment and size
- You need to visualize single-channel arrays with a colormap
Attributes¶
Each item in the visual is a single image. Multiple images can be efficiently displayed at different positions in the same visual.
Warning
Currently, all images in a given visual must share the same texture image, though they can use different texture coordinates.
Options¶
Option | Type | Description |
---|---|---|
unit |
enum |
Unit of the image size |
mode |
enum |
Color mode |
rescale |
enum |
Rescale mode |
Per-item¶
Attribute | Type | Description |
---|---|---|
position |
(N, 3) float32 |
Anchor point for the image (in NDC coordinates) |
size |
(N, 2) float32 |
Image width and height |
anchor |
(N, 2) float32 |
Relative point in the image attached to position |
texcoords |
(N, 4) float32 |
Texture coordinates (default is (0, 0, 1, 1) ) |
facecolor |
(N, 4) uint8 |
Fill color (used in fill mode) |
Per-visual (uniform)¶
Attribute | Type | Description |
---|---|---|
border |
bool |
Show or hide a border around the image |
edgecolor |
cvec4 |
Color of the border edge |
linewidth |
float |
Width of the border in pixels |
radius |
float |
Border corner radius (for rounded edges) |
colormap |
enum |
Colormap used in colormap mode |
permutation |
ivec2 |
Axis swizzle for texture sampling (e.g. (1, 0) ) |
texture |
texture | Texture object (RGBA or single-channel) |
Image unit¶
Use the unit
attribute to specify the unit in which the image sizes are expressed:
Unit | Description |
---|---|
pixels (default) |
Size is in framebuffer pixels |
ndc |
Size is relative to panel NDC coordinates |
Color mode¶
Use the mode
attribute to define how the image is rendered:
Mode | Description |
---|---|
rgba (default) |
Full RGBA image |
colormap |
Single-channel image with a colormap |
fill |
Fill with uniform facecolor (no texture needed) |
Rescale mode¶
Use the rescale
attribute to define how the image is resized:
Mode | Description |
---|---|
None (default) |
Fixed size, no scaling |
rescale |
Image scales with pan-zoom |
keep_ratio |
Image scales while maintaining its aspect ratio |
Border¶
Use the border
attribute to indicate whether a border should be shown. If enabled, the following attributes can be used to customize the image border:
Attribute | Description |
---|---|
edgecolor |
Color of the border |
linewidth |
Thickness in pixels |
radius |
Corner rounding radius |
Anchor point¶
The anchor
attribute defines which part of the image rectangle is attached to the position
coordinate in NDC space.
The anchor is specified as a 2D vector in the range [-1, +1]
.
Image anchor point
Here are a few examples:
Anchor | Description |
---|---|
[-1, -1] |
bottom-left corner |
[0, 0] |
center of the image |
[+1, +1] |
top-right corner |
This allows precise placement of the image relative to your coordinate system.
Info
The anchor feature example illustrates how the behavior of the anchor in the Image visual.
Texture swizzling¶
The permutation
attribute controls how texture axes are interpreted.
For example, (0, 1)
is the default (UV); (1, 0)
uses VU instead.
This can be useful when image data is stored with flipped or transposed axes.

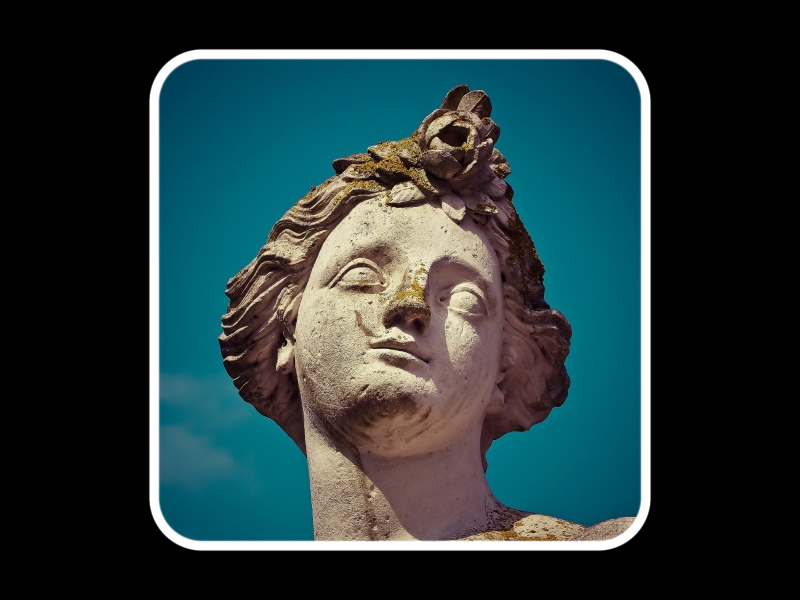

Example¶
import imageio.v3 as iio
import numpy as np
import datoviz as dvz
def load_image():
filepath = dvz.download_data('textures/image.png')
arr = iio.imread(filepath)
h, w, _ = arr.shape
return np.dstack((arr, np.full((h, w), 255))).astype(np.uint8)
image = load_image()
height, width, _ = image.shape
position = np.array([[0, 0, 0]], dtype=np.float32)
size = np.array([[width, height]], dtype=np.float32)
anchor = np.array([[0, 0]], dtype=np.float32)
texcoords = np.array([[0, 0, 1, 1]], dtype=np.float32)
app = dvz.App()
figure = app.figure()
panel = figure.panel()
panzoom = panel.panzoom()
visual = app.image(
rescale='keep_ratio',
position=position,
size=size,
anchor=anchor,
texcoords=texcoords,
#
# Image border
linewidth=10,
edgecolor=(255, 255, 255, 255),
radius=50,
)
texture = app.texture_2D(image, interpolation='linear') # by default, no interpolation
visual.set_texture(texture)
panel.add(visual)
app.run()
app.destroy()
Summary¶
The image visual provides flexible placement and styling of 2D textures.
- ✔️ Position, anchor, and size control
- ✔️ Borders, round corners, and rescaling
- ✔️ Support for colormaps and single-channel data
