Volume Visual

The volume visual displays 3D scalar fields using ray-based volume rendering. It supports NDC-aligned bounding boxes, axis permutation, basic colormapping, and limited transfer functions.

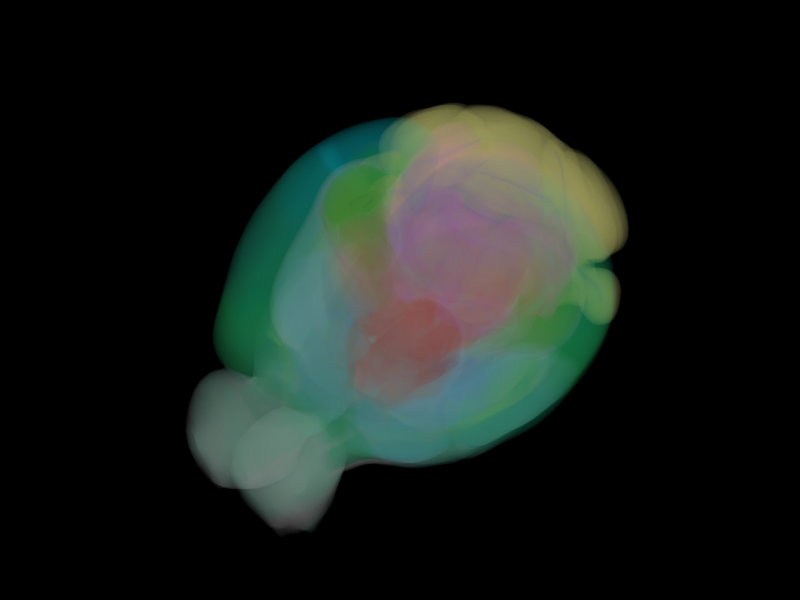

Volume visual

Overview

  • Renders 3D scalar data in a box defined by NDC bounds
  • Basic support for colormapping and transfer functions
  • Texture-based rendering with customizable axis permutation
  • Useful for initial previews of volumetric data

Warning

Volume rendering is currently a basic implementation. It is neither highly efficient nor visually polished yet. Slicing, advanced transfer functions, and performance improvements are planned for future versions.


When to use

Use the volume visual when:

  • You want to visualize 3D data like MRI, CT, simulations
  • You need a fast volumetric rendering preview
  • You are working within NDC and want basic shading support

Attributes

Options

Option Type Description
mode enum Color mode

Per-item

Attribute Type Description
bounds 3 × (2,) float Bounding box in NDC: xlim, ylim, zlim
texcoords 2 × (3,) float UVW texture coordinates at volume corners

Per-visual (uniform)

Attribute Type Description
permutation (3,) int Axis order of the 3D volume texture (default (0,1,2))
slice int Slice index (not implemented yet)
transfer vec4 Transfer function parameters (limited)
texture texture 3D volume data (e.g. density, intensity)

Creation

To create a volume visual:

visual = app.volume(mode='colormap')

Supported modes:

Mode Description
colormap Apply a colormap to a single-channel 3D texture
rgba Use a 4D texture (RGBA channels for each voxel)

Bounds and texture mapping

You must define the bounds of the volume in NDC:

visual.set_bounds(xlim, ylim, zlim)

Then set the texture coordinates:

visual.set_texcoords(uvw0, uvw1)

This maps the 3D texture onto the NDC bounding box.


Axis permutation

To reorder the axes of the 3D texture (e.g. for wvu-ordered data), set:

visual.set_permutation((2, 1, 0))  # wvu

This ensures correct alignment of the volume with your data orientation.


Transfer function

You can supply a transfer function parameter (currently very limited):

visual.set_transfer((0.3, 0.5, 0.8, 1.0))  # placeholder values

More expressive transfer functions (e.g. opacity maps, histograms) are planned.


Example

import gzip

import numpy as np

import datoviz as dvz


def load_mouse_brain():
    filepath = dvz.download_data('volumes/allen_mouse_brain_rgba.npy.gz')
    with gzip.open(filepath, 'rb') as f:
        return np.load(f)


volume = load_mouse_brain()
shape = volume.shape
dtype = volume.dtype
D, H, W = shape[:3]
scaling = 1.0 / D
x, y, z = W * scaling, H * scaling, 1

app = dvz.App()
figure = app.figure()
panel = figure.panel()
arcball = panel.arcball(initial=(-2.25, 0.65, 1.5))
camera = panel.camera(initial=(0, 0, 3))

texture = app.texture_3D(volume, shape=(W, H, D), interpolation='linear')
visual = app.volume(
    bounds=((-x, +x), (-y, +y), (-z, +z)), texture=texture, mode='rgba', transfer=(0.2, 0, 0, 0)
)
panel.add(visual)

app.run()
app.destroy()

Summary

The volume visual provides a starting point for 3D scalar field rendering.

  • ✔️ Bounding box in NDC
  • ✔️ Texture mapping with colormap
  • ✔️ Axis reordering support
  • ❌ No slicing or rich transfer functions (yet)

See also:

  • Slice: for 2D views of 3D data
  • Mesh: for explicit 3D geometry
